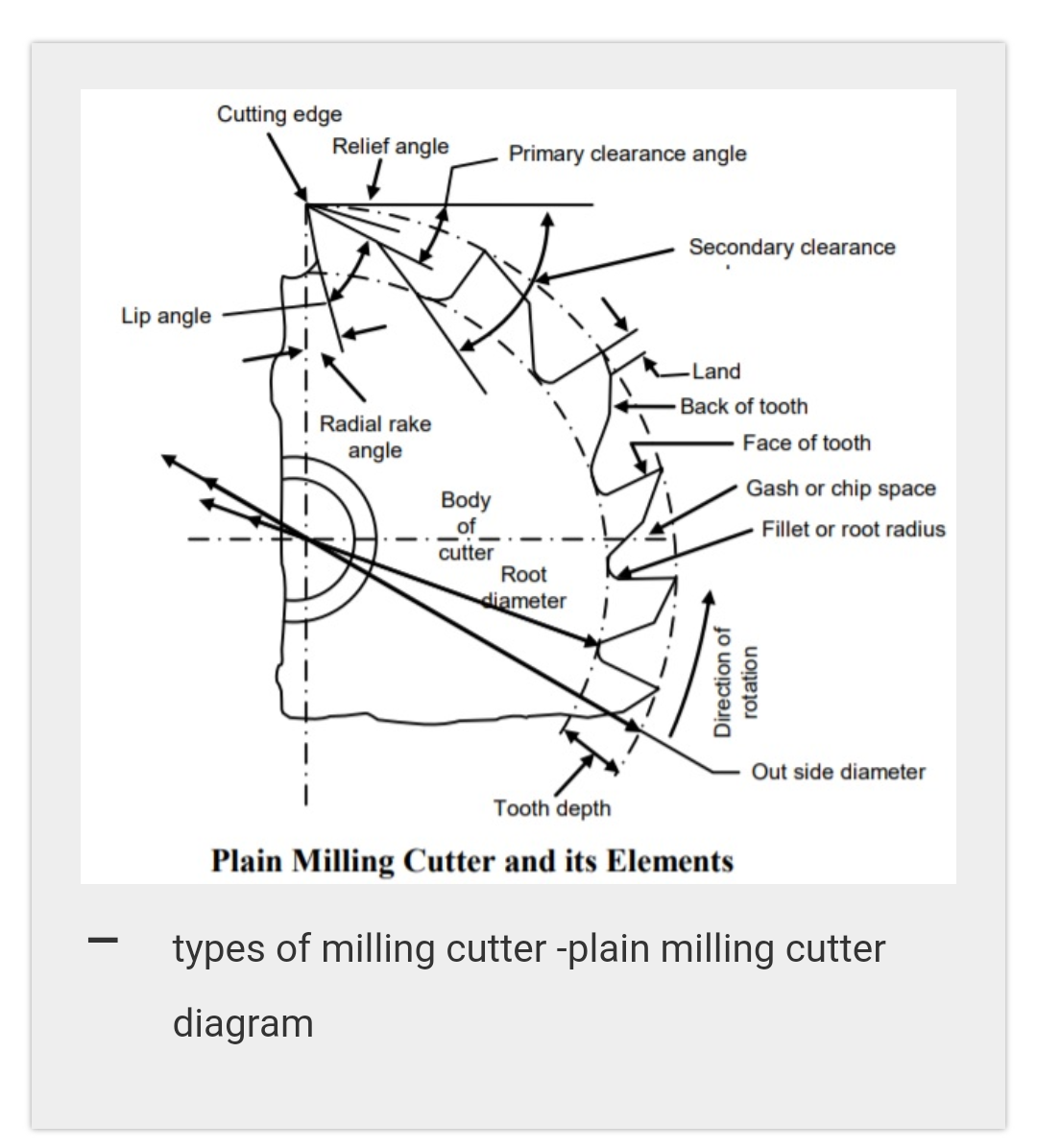

The standard and special milling cutters generally used for normal type of milling cutter are explained below. Plain Milling Cutter The plain milling cutters are cylindrical in shape and have teeth on the circumference surface only. The cutters are intended for the production of flat surfaces parallel to the axis of rotation of the spindle.
The cutter teeth may be straight or helical according to the size of the cutter.
Very wide type of milling cutter milling cutters are termed as slabbing cutter. These cutters have nicked teeth. The object of nick is to break up the chips and enables the cutter to take a course feed. Plain and Slab Milling Cutter Side and Type of milling cutter Cutters These cutters have teeth on its periphery and also on one side or both of its sides.
The side milling cutters are intended for removing metals from the side of the work.
The cutting process is achieved by the movement of the cutter within the machine. In order to achieve effective cutting, the features of the milling cutter type of milling cutter be critically considered.
The milling cutter features include shape, flutes, center cutting, helix angle, shank, roughing, and coatings.
What are the Main Types of Milling Cutters According to Use? - Q Hunt

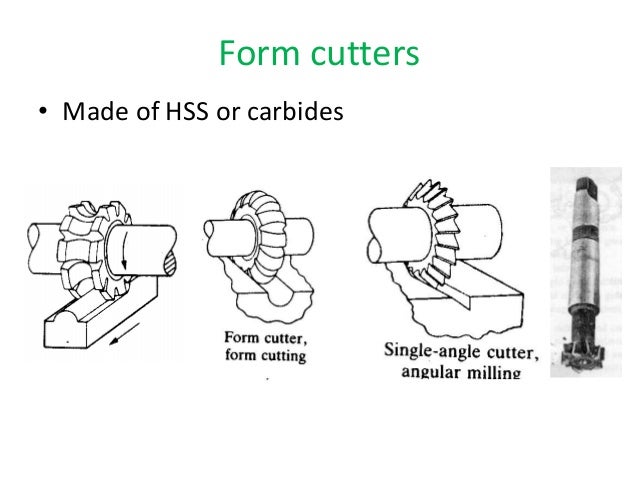

The shape of the cutter determines the type of cutting operation it can perform. There are many standard shapes used in various industries. It is made by High speed steel or harder material.
This cutters mainly available in two types. In this case, one or two side milling cutters, a fly cutter, or an end milling cutter may be used. However, for type of milling cutter majority of operations, cutters are specially designed and named for the operation they type of milling cutter to accomplish.
The milling cutter should be small enough in diameter so that the pressure of the cut will not cause the workpiece to be sprung or displaced while being milled.
Effect of milling cutter diameter on workpiece travel. Size of Milling Cutter In selecting a milling cutter for a particular job, choose one large enough to span the entire work surface so the job can be done with a single pass.
If this cannot be done, remember that a small diameter cutter will pass type of milling cutter a surface in a shorter time than a large diameter cutter which is fed at the same speed.
This fact is illustrated in Figure Care and Maintenance of Milling Cutters The life of a milling cutter can be greatly prolonged by intelligent use and proper storage.
General rules for the care and maintenance of milling cutters are given below.
New cutters received from stock are usually wrapped in oil paper which should not be removed until the cutter is used. Take care to operate the machine at the proper speed for the cutter being used, as excessive speed will cause the cutter to wear rapidly from overheating.
Take care to prevent the cutter from striking the hard jaws of the vise, chuck, clamping bolts, type of milling cutter nuts. Never operate a cutter backwards.
Due to the clearance angle, the cutter will rub, producing a great deal of friction. Operating the cutter backward may result in cutter breakage.
